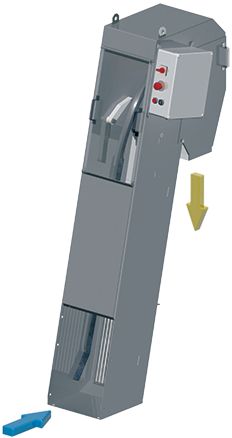

BAR SCREEN TYPE SI350

Bar Screen for flows up to 50 m3/h

The Bar Screen Type SI350 has a fixed width of 350 mm, hence its name. It’s a Bar Screen with a slope of 15°, driven by a polyester strap, like all our Bar Screens.

This model has been specifically designed for the treatment of wastewater with a flow up to 50 m3/h.

Its purpose is to be installed within a channel, either on new or existing civil works.

Thanks to its own electrical cabinet, this Bar Screen is 100% autonomous, and very easy to operate.

Taking very little space and having a simple and reliable design, the Bar Screen Type SI350 is the ideal solution for the screening of wastewater in small facilities.

FEATURES

  • Downstream waste discharge
  • Ideal for installations with flows up to 50 m3/h.
  • Installation into channels only
  • Simple design = long-term reliability.
  • Removable screen and comb
  • Compliant with EC standards
  • Integrated control panel (optional)
  • Waste directly recovered into a waste container or other container

TECHNICAL DATA

  • Max. Flow Rate : 50 m3/h
  • Bar Spacing : 6, 10, 15 & 20 mm
  • Width : 350 mm
  • Depth under Installation Plane : 400 to 1,400 mm
  • Discharge Height: 600 to 1,400 mm
  • Discharge Side : Downstream
  • Slope : 15°
  • Material : Stainless Steel 304L or 316L

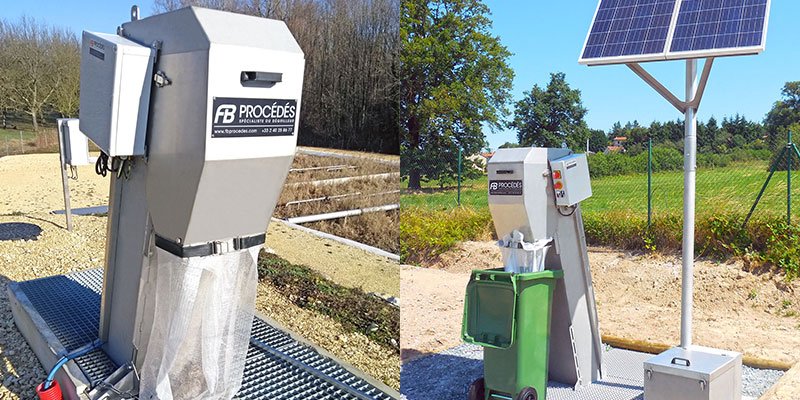

EXAMPLES OF INSTALLATIONS
