STEP BAR SCREEN TYPE PROSTEP

The Fine Step Bar Screen PROSTEP has been designed to offer a reliable and efficient bar screening solution, while minimizing the operation and maintenance costs.
Contact Us

Step Bar Screen for fine screening from 2 to 6mm

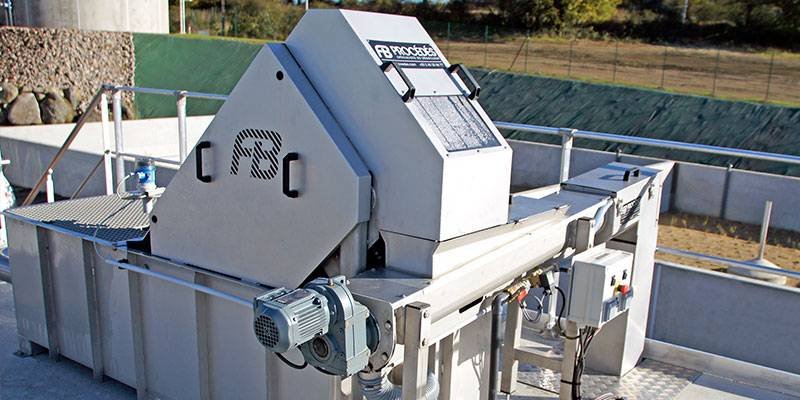

step bar-screen wastewater treatment

The Step Bar Screen type PROSTEP is the result of 30 years of bar screening expertise.

More than an innovative fine step bar screen, the PROSTEP has been developped to meet the highest expectations from the operators.

The Step Bar Screen PROSTEP has been designed to offer a reliable and efficient bar screening solution<:strong>, while minimizing the operation and maintenance costs.

An FB Procédés innovation: 100% of the submerged parts are made of stainless steel, avoiding the use of plastic spacers. Plastic spacers are expensive and not reliable. Thanks to the use of stainless steel spacers, the Step Bar Screen PROSTEP has an extended lifetime, and much lower maintenance costs.

The unique design of the bar screens blades has been optimized to greatly improve the lifting of the debris, to avoid debris from falling back into the channel.

Last but not least, the bar screen of the Step Screen PROSTEP uses a unique technology to minimize head loss, which is one of the main concerns of the operators.

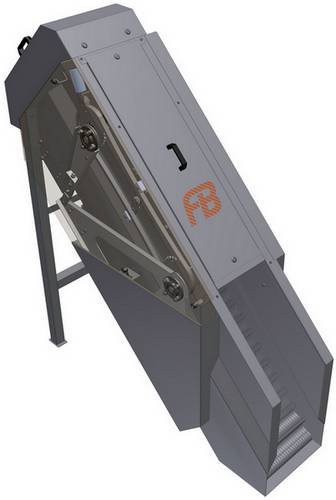

step bar-screen

FEATURES OF FINE STEP BAR SCREEN

  • Fine opening: 2 to 6 mm
  • 100% of submerged parts made of stainless steel
  • All parts easy to access above grade
  • Fine screening at high flows
  • Optimized debris lifting
  • Custom made
  • Minimized head loss
  • Quiet operations (less than 50 dB)

TECHNICAL DATA OF STEP BAR SCREEN

  • Max Flow : 1,000 m3/h
  • Opening : 2 to 6 mm
  • Width : 300 to 2,000 mm
  • Max Depth : 2,000 mm
  • Discharge Side : Downstream
  • Slope : 45°
  • Material : Stainless steel 304L or 316L

EXAMPLES OF INSTALLATIONS OF STEP FINE SCREEN FOR WASTEWATER TREATMENT

Key Figures:

5,000 Screens

30 Years of Experience

2,000 Clients
